T.VST59.03 For M201EW02 V.8 LCD/LED Controller Driver Board (TV+
[32795025402]
This product was added to our catalog on Monday 12 July, 2021.
Tell a Friend
Reviews
price:
$51.86
Product Description

Note:
Please leave a message of your LCD model and version when you make the payment ,thanks !

Support Russian



This is a great set of easy-reassembling LCD controller kit which is used to turn a unused LCD panel into a desktop/PC
monitor. It will be a surprise that your unused LCD will be of good use, and no longer be a waste.  Or it is a very interesting things to make a monitor successfully by yourself.  It supports most of the LCD panel from 12.1" to 55" with a LVDS interface and a resolution than 2048x1152, plug & play kit, need soldering is not needed.



Description:

T.VST59 is analog TV control board,which is suitable for Asia-Pacific and Middle-East market.It can support less than
22 inch LCD panels wiich resolution is up to 2048X1152.

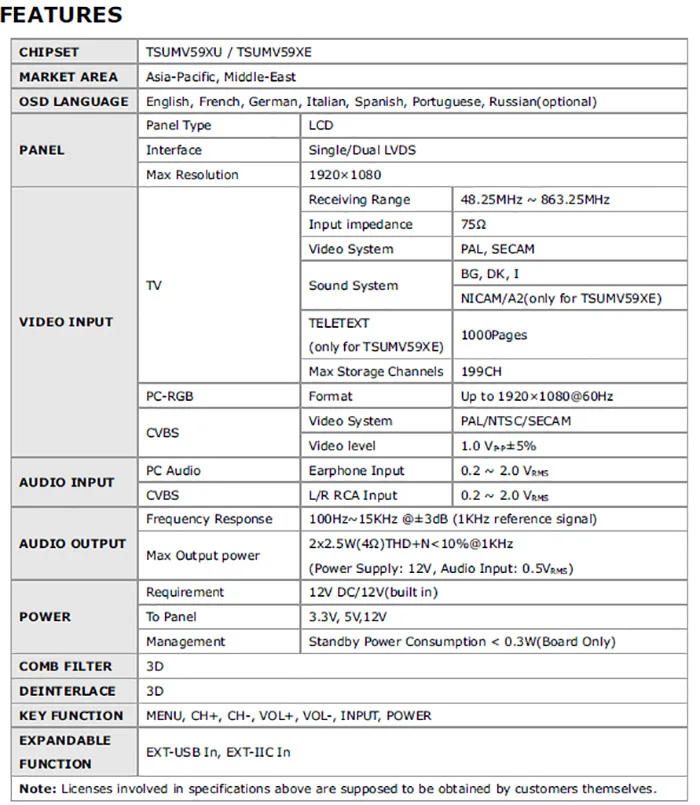

T.VST59.03 support six kinds of main chip: TSUMV29LU, TSUMV29LE, TSUMV39LU, TSUMV39LE,TSUMV59XU, TSUMV59XE,differences are in the following table.This specification is only for T.VST59.03 with main chip TSUMV59XU or TSUMV59XE.


aeProduct.getSubject()


T.VST59 is with interface show in below:



aeProduct.getSubject()



 Board Size:7.13in(L)*1.69in(W)*0.67in(H)



Buyer Tips:

 Please make sure the vertical and horizontal driver inside your LCD still works,this board can not fix it if it doesn't work.

 * Please order directly if your LCD model number is same as our title, or please DO leave us a message with your LCD
    model and version
 when you are ordering.



   Q: How to find my LCD model number and version number?

   A: Normally the label on LCD backside includes information such as LCD model and  version number.

aeProduct.getSubject()

 * Please prepare VGA cable/DVI cable/HDMI cable and power adapter for the controller board you bought.
    They aren't included in the kit.

 * This board requires DC 12V 3.3A input power for LCD size under 17inch, and DC12V 4A for LCD between 17 to 22 inch.
    The LCD cannot be lit up if the power current is not applied as stated.



Please pay attention to the working supply for controller board as the following:

The supply as left picture showed can work but the right one doesn't!!





aeProduct.getSubject()

* To protect this board from damage, high quality power adapter is recommend, you can buy from our store as well with
    clicking below links:

    12VDC 3.3A power adapter: Click here

     12VDC 4.0A power adapter: Click here



Install Tips:

 * Keep the backside away from metal subjects when the power is applied, or it may cause short-cut or damage of main IC.

 * Since the driver and voltage varies from different LCDs, please do not any change jumpers on the board, or use the kit for other LCD with different model number , otherwise you may damaged your LCD.  Please consult us if you have any other question or want to use the kit for other LCD panel.



aeProduct.getSubject()

 * link the key button board, (starts from left side, and leave some pins on the right blank), and connect  inverter with controller oard, then Connect 12V DC power to the board for LCD  CCFL backlight lamp test.
    If the LCD panel is lit up, it means that backlight of the LCD is working, then you can turn off  the power. If the LCD does
    not lit up, then the backlight is broken, you need to replace the lamps.

aeProduct.getSubject()

 *According the above operated way , then unplug the power supply, Connect LVDS with the LCD connector and control board

   (connect the marked LVDS area with 1st pin), and then insert the VGA or HDMI or DVI input  signal(Default VGA input,
   please use the key buttons to switch for HDMI / DVI input)  .

LM00058-1 (2)



aeProduct.getSubject()



 *Apply with DC 12V power

 *Complete connecting kit.


 Here is the assembled LCD set:

 IMG_4603






 Now enjoy the success of DIY monitor, our professional engineer will always be happy to support you
 if there is any question, thank you!



Package Including:

  1x LCD/LED Controller Board(T.VST59)
  1x CCFL Invertor Board
  1x Keypad with Cable
  1x LVDS Cable
  1x Remote control

aeProduct.getSubject()

We care your needs

aeProduct.getSubject()

We accept payment via Escrow, you can pay with your credit card or debit card through Escrow.

aeProduct.getSubject()

Combined Shipment
For multi-item orders, please DO NOT submit payment until you have won all items you wish to combine.

Handling & Shipping Time
Handling Time: 1 business days
Shipping Time: 11-30 Business days

aeProduct.getSubject()

We stand behind all of our products with a 30-day, money-back guarantee.

  • If you receive an item which is not in the condition as described, we will promptly provide you an refund or replacement
  • If your item doesn't fit or you don't want it, you can return it for a refund (less shipping).
  • For return shipment please contact us through eBay with supplying us the item number and reason for return (Return
    acceptable up to 15days after you receive the item
  • Refund will be issued within 1-2 business days upon the receipt of returned item

    Please contact us (eBay Messaging preferred) and allow us to make it right if you have any question with your order.
    We will respond to all inquiries by the close of the next business day. Complete details of our return policy are included
    on each product detail page.

aeProduct.getSubject()
Our customer service reps respond to inquiries via the eBay messaging system daily on business days.
Our working hours are(Monday - Fri-day):

CN: 9 AM - 6 PM       RU: 4 AM - 1 PM
AU: 11 AM - 8 PM      UK: 1 AM - 10 AM

DE: 2 AM - 11 AM      US: 8 PM - 5 AM ET
